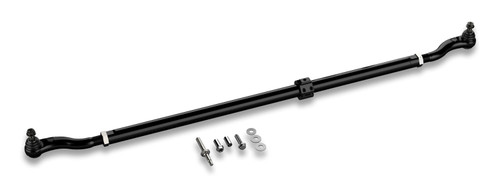

Teraflex HD Tie Rod Kit for 2008-2018 Wrangler JK
Description:
The TeraFlex JK / JKU HEAVY-DUTY TIE ROD KIT is designed for extreme conditions that typically cause factory steering components to bend and fail.
FITS:
JK Wrangler (2-door)
JKU Wrangler Unlimited (4-door)
SPECS:
LIFT HEIGHT: ANY
INCLUDES:
HD Tie Rod – 1853910
Steering Stabilizer Relocation Mounting Bracket Kit – HD 1-5/8″ (42mm) Tie Rod – 1123160
FEATURES & BENEFITS:
HD 1-5/8″ O.D. (42mm) 4140 heat treated chromoly steel
More than 200% stronger than factory tie rod
Forged tie rod end housing designed specifically for JK / JKU models
Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud & 1045 carbon steel housing
Features adjustable preload tension to ensure proper long-term durability
The joint is pressed into the rod end housing & secured w/ a snap ring
Tie rod end joint allows up to 14 degrees of movement to minimize tie rod roll, while maximizing turnability
Allows proper clearance for use with factory 17″ wheels
Steering Stabilizer Relocation Mounting Bracket Kit – HD 1-5/8″ (42mm) Tie Rod (# 1123160)
NOTE:
Modifications required to flip the JK / JKU drag link – this kit does not include those required items.
