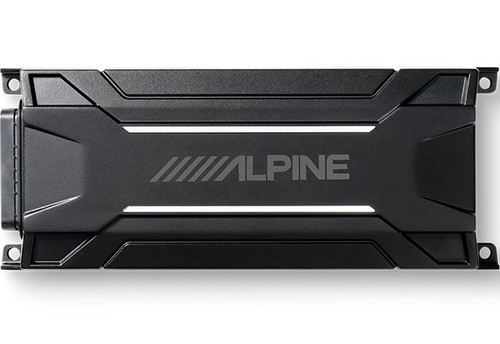

KTA-30FW 4-Channel Weather Resistant Tough Power Pack Amplifier
This tiny amplifier can be installed with an aftermarket or factory head unit, resulting in up to 4 times the power increase over the head unit’s original built-in power.
Overview
Alpine’s Class D amplifier circuit with Dynamic Peak Power (D.P.P.)
Weather resistant (IP66 rating)
150W x 4 D.P.P. (2Ω/4Ω, 14.4V, ≤ 1% THD+N)
CTA-2006-B Specifications: 75W RMS x 4 (2Ω/4Ω, 14.4V, ≤ 1% THD+N)
82dB S/N (ref. 1W into 4Ω)
>0.05% THD

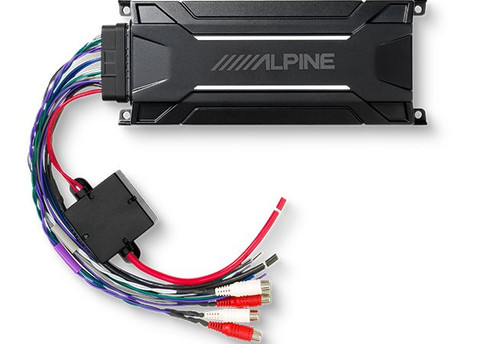

OEM-grade Tyco 26-pin connector with pigtail wire harness
Speaker/RCA inputs (Selectable, High range=0.5-10V, Low range=0.2-4V)
Sound control
Crossovers: Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable)
Input gain settings (variable)
2ch/4ch input (selectable)
