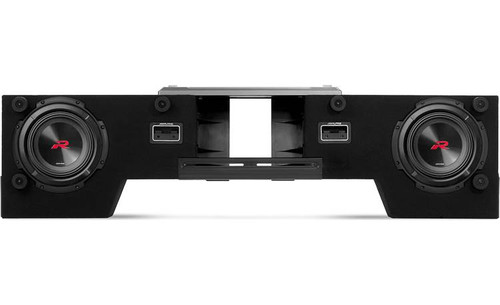

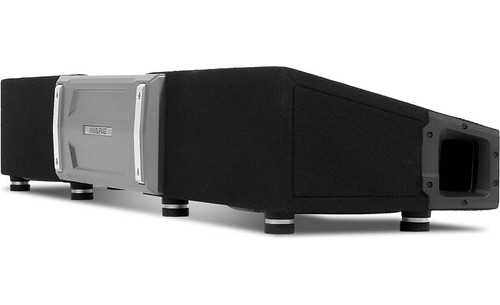

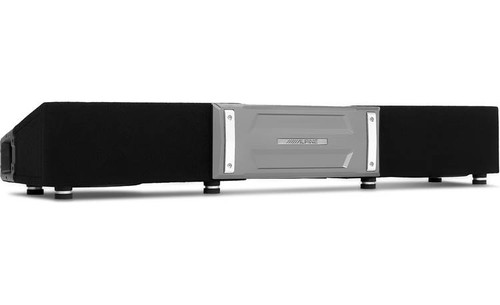

Alpine R2-DB8V-TRK Dual 8″ Halo R-Series Preloaded Truck Subwoofer Enclosure w/ ProLink
From towing to travel, you depend on your truck to get you where you want to go, but can you rely on getting the best performance from your sound system? Now you can add deep, accurate bass in your truck without compromising valuable cabin space with the new R2-DB8V-TRK Dual 8” Alpine Halo R-Series Preloaded Truck Subwoofer Enclosure with ProLink™.
Key Features
Groundbreaking Alpine Halo Design
ProLink™ ported enclosure design
Rugged center link plate links two preloaded enclosures together
Integrated amplifier tray
Adjustable linking design adjusts width from 40” – 51” to fit most full-size trucks
Compact design allows for under the seat installation in most full-size trucks
Rubber, modular stackable foot design accommodates uneven truck floor under seat areas
Ported enclosures with high performance subwoofers
CARB compliant 5/8” MDF construction
Premium black carpet
Front link bracket cover with an Alpine logo badge
Side-firing cabin loading ports
Premium Alpine wire terminals
Twist-Lock Grille Mount System
Features
Designed for Trucks
These enclosures were designed to fit under the back seat of most full-size trucks. Two 8” subwoofers are preloaded into the compact enclosure and linked with a ProLink™ bracket that can be adjusted from 40” to 51” for a wide range of applications.

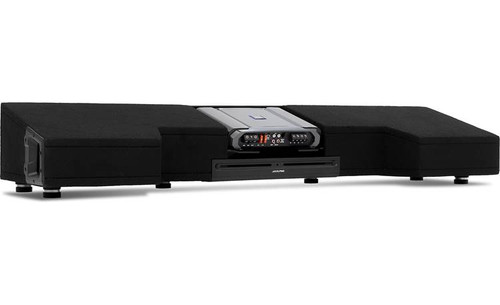

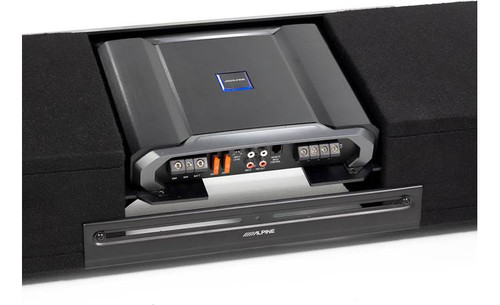

Integrated Amp Tray
Centered on the enclosures is an integrated amplifier mount tray that’s optimized for Alpine Mono-Power Amplifiers (sold separately).
Next-Gen Performance
The ported subwoofer enclosures feature the next generation 8” R2-Series Subwoofers with a more powerful motor that creates deeper, more accurate bass.
Alpine Halo Design
The enclosure pulls design cues from the Alpine Halo Display with unique, curved edges outlined by a silver trim and a front link bracket cover with an Alpine logo badge.
Tech Specs
Dimensions: 40”-51” (W) x 8-3/4” (H) x 13-3/4” (D)
Power Range: 300W – 750W
Power Handling: 750W
Frequency Response: 32Hz-200Hz
Vented Enclosure Tuning Frequency: 36Hz
Sensitivity: 84dB
Dual voice coils Wired in Parallel for a 2Ω Load
Custom speaker terminals fit up to 12AWG speaker wire
Optimized Fitment
• 2018-Up RAM 1500 (Crew Cab)
• 2015-Up Ford F-150 (Crew Cab)
• 2018-Up GMC Sierra (Crew Cab)
• 2018-Up Chevrolet Silverado (Crew Cab)
• 2007-Up Jeep Wrangler (JK/JL) and Jeep Gladiator
